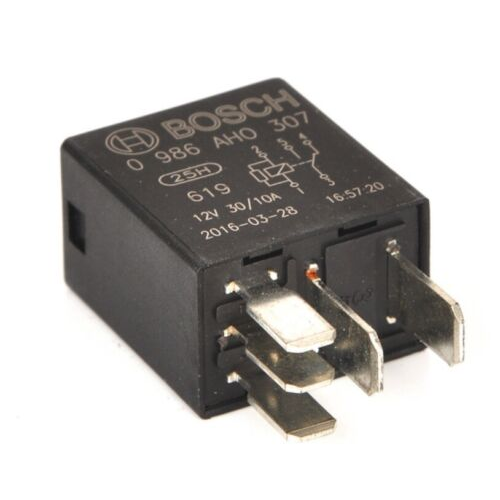

BOSCH - 0986AH0307 - Multifunctional Relay

THIS RELAY IS CATEGORIZED AS MULTIFUNCTIONAL BECAUSE IT SUPPORTS VARIOUS
HIGH-CURRENT SWITCHING TASKS, PARTICULARLY IN ALTERNATOR-RELATED CIRCUITS.
ITS 5-PIN LAYOUT AND UNIVERSAL VOLTAGE/CURRENT RATING MAKE IT

SUITABLE FOR:

CHARGING SYSTEM CONTROL
LOAD MANAGEMENT
AUXILIARY POWER CIRCUITS
THE ABSENCE OF A DYNAMIC FUNCTION (LIKE A DIRECTION INDICATOR) AND HOLDER
SUGGESTS IT’S INTENDED FOR DIRECT SOCKET INTEGRATION IN STANDARD RELAY
BLOCKS.

SPECS:
CURRENT STRENGTH [A] 30 A
VOLTAGE [V] 12 V
NUMBER OF PINS 5 TERMINAL
RELAY FUNCTION ALTERNATOR
COMBI SWITCH FUNCTION WITHOUT DYNAMIC FUNCTION (DIRECTION INDICATOR)
TEMPERATURE RANGE FROM [°C] -40 °C
TEMPERATURE RANGE TO [°C] 100 °C
WITHOUT HOLDER.

PICTURES FOR ILLUSTRATION PURPOSES ONLY.
