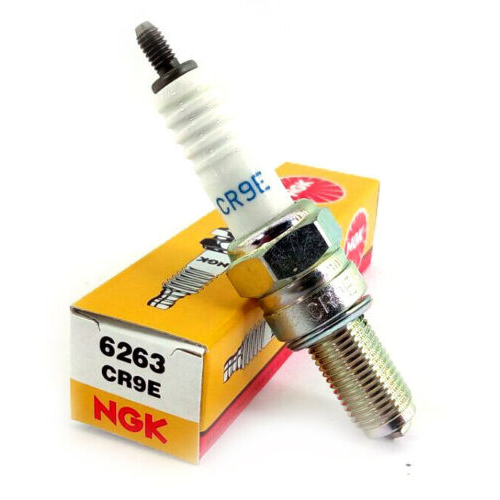

BRAND: NGK/NTK

TRIVALENT METAL PLATING PROVIDES SUPERIOR ANTI-CORROSION AND
ANTI-SEIZING PROPERTIES
CORRUGATED RIBS PREVENT FLASHOVER
PURE ALUMINA SILICATE CERAMIC INSULATOR, PROVIDES SUPERIOR STRENGTH AND BETTER HEAT TRANSFER
COPPER CORE AIDS IN HEAT REMOVAL
TRIPLE SEALS PREVENT LEAKAGE
SHELL:
THREAD DIAMETER: 10MM
THREAD PITCH: 1.0MM
SEAT TYPE: GASKET
REACH: 19MM (3/4")
HEX SIZE: 5/8" (16MM)
TERMINAL TYPE: THREADED STUD
OVERALL HEIGHT: ISO
GAP: .031" (0.8MM)
CENTER ELECTRODE:
MATERIAL: NICKEL
TYPE: STANDARD
SIZE: 2.5MM
PROJECTION: NON-PROJECTED
GROUND ELECTRODE:
MATERIAL: NICKEL
TYPE: STANDARD
RESISTOR: YES
RESISTOR VALUE: 5K OHM
HEAT RANGE: 9
TORQUE SPECS: CAST IRON: 7.2-10.8 LB. FT. ALUMINUM: 7.2-8.7 LB. FT.

PICTURES FOR ILLUSTRATION PURPOSES ONLY.
