Suitable for:

Fortuner (N5, N6) 06.04 - 09.15
3.0 D (KUN61) 03.06 - 03.16 120 163 2982 4 1KD-FTV
3.0 D 4WD (KUN51) 03.06 - 03.16 120 163 2982 4 1KD-FTV

Fortuner (N15, N16) 05.15 -
2.7 VVTi (TGN166, TGN168) 05.16 - 02.21 122 166 2694 4 2TR-FE
4.0 4x4 (GGN155) 05.16 - 02.21 175 238 3956 6 1GR-FE
2.4 GD-6 (GUN165) 03.16 - 110 150 2393 4 2GD-FTV
2.4 GD-6 4x4 (GUN155) 03.16 - 110 150 2393 4 2GD-FTV
2.8 GD-6 (GUN166) 01.16 - 02.21 130 177 2755 4 1GD-FTV
2.8 GD-6 4x4 01.16 - 02.21 130 177 2755 4 1GD-FTV
2.8 GD-6 (GUN166) 10.20 - 150 204 2755 4 1GD-FTV
2.8 GD-6 4x4 (GUN156) 10.20 - 150 204 2755 4 1GD-FTV

Hilux 7 Pick-up (N1, N2, N3) 08.04 - 02.16
2.7 VVT-i 05.05 - 02.16 118 160 2694 4 2TR-FE
2.7 VVT-i 4WD 05.05 - 10.09 118 160 2694 4 2TR-FE
4.0 V6 VVT-i 10.08 - 02.16 175 238 3956 6 1GR-FE
4.0 V6 VVT-i 4WD 04.05 - 02.16 175 238 3956 6 1GR-FE
2.5 D-4D (KUN15, KUN10) 05.05 - 02.16 75 102 2494 4 2KD-FTV
2.5 D-4D 4WD (KUN25) 05.05 - 02.16 75 102 2494 4 2KD-FTV
2.5 D-4D (KUN15, KUN35) 10.12 - 02.16 106 144 2494 4 2KD-FTV
3.0 D-4D (KUN16, KUN36) 05.05 - 02.16 120 163 2982 4 1KD-FTV
3.0 D-4D 4WD (KUN26) 05.05 - 02.16 120 163 2982 4 1KD-FTV

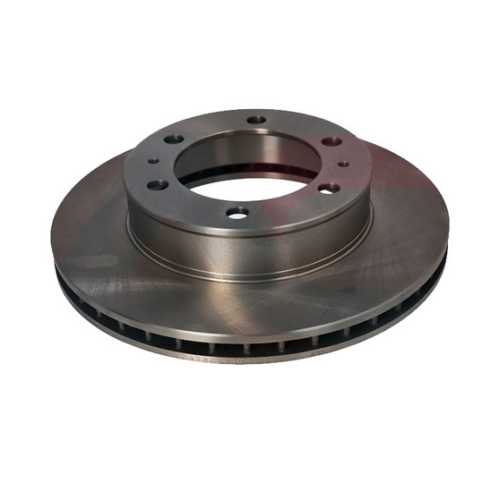

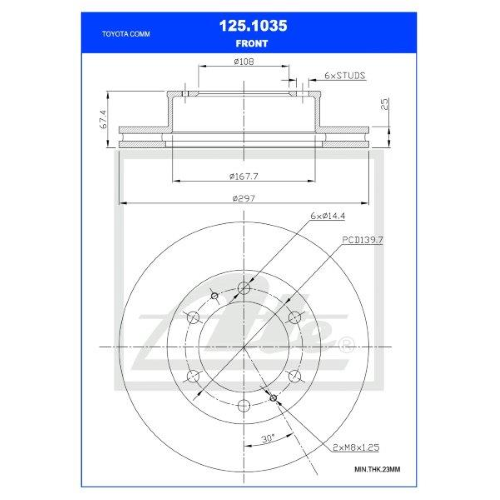

SPECS:
Diameter [mm] 297,00 mm
Height [mm] 67,40 mm
Thickness [mm] 25,00 mm
Centering Diameter [mm] 108,00 mm
Number of Holes 6
Brake Disc Type Vented
Fitting Position Front Axle
Outer Diameter [mm] 297,00 mm
Brake Disc Thickness [mm] 25,00 mm

PICTURES FOR ILLUSTRATION PURPOSES ONLY.
