SUITABLE FOR:

[ALL below are for Front]:

DAIHATSU
COPEN (L880_, L881_) 0.7 (L880) 50KW  [09/03 - 12/07]
COPEN (L880_, L881_) 1.3 64KW  [03/06 - 09/12]
COUORE VI (L251, L250_, L260_) 1.0 43KW  [05/03 -]
CUORE VII (L275_, L285_, L276_) 1.0 LPG 51KW  [09/11 - 12/12]
CUORE VII (L275_, L285_, L276_) 1.0 (L276) 51KW  [04/07 -]
SIRION (M3_) 1.3 (M301) 64KW  [01/05 -]
SIRION (M3_) 1.0 (M300) 51KW  [01/05 - 06/13]
SIRION (M3_) 1.3 4WD 64KW  [04/05 -]
SIRION (M3_) 1.0 LPG 51KW  [01/05 - 06/13]
SIRION (M3_) 1.3 4WD 67KW  [03/08 -]

SUBARU
JUSTY IV 1.3 AWD 67KW  [03/08 -]
JUSTY IV 1.0 (M300) 51KW [01/07 -]
JUSTY IV 1.0 BiFuel 51KW  [09/07 - 03/12]

SUZUKI
ALTO VII (GF) 1.0 LPG 50KW  [04/09 -]
ALTO VII (GF) 1.0 (AMF310, GFC31S) 50KW  [01/09 -]
CARRY Bus 1.3 57KW  [03/99 - 12/06]
CARRY Platf (FD, DA5_T, DA6_T) 1.3 (DA32T) 56KW  [10/00 -09/04]
CARRY Van (FD) 1.3 16 V (DA32V) 58KW  [03/00 -]
CELERIO (LF) 1.0 (AVK310) 50KW [03/14 -]
IGNIS I (FH) 1.3 4WD (RG413) 61KW  [10/00 - 09/03]
IGNIS I (FH) 1.3 (HV51, HX51, RG413) 61KW  [10/00 - 09/03]
IGNIS I (FH) 1.5 Sport (RG415) 80KW  [12/03 - 12/05]
IGNIS II (MH) 1.3 4x4 (RM413) 69KW [09/03 -]
IGNIS II (MH) 1.3 (RM413) 69KW  [09/03 -]
IGNIS II (MH) 1.3 DDiS (RM413D) 51KW  [09/03 -]
IGNIS II (MH) 1.5 4x4 (RM415) 73KW  [09/03 -]
IGNIS II (MH) 1.5 (RM415) 73KW  [09/03 -]

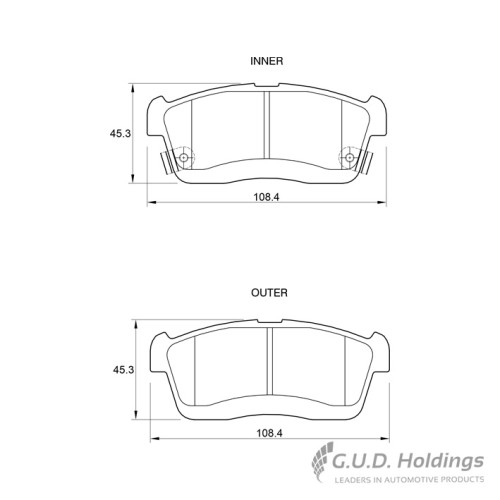

SPECS:
Front Axle
Length [mm] 109,00 mm
Height 1 [mm] 45,00 mm
Thickness [mm] 14,80 mm
Wear Warning Contact with acoustic wear warning
Brake System Akebono

PICTURES FOR ILLUSTRATION PURPOSES ONLY.
