Suitable for:

Fortuner (N15, N16) 05.15 -
2.7 VVTi (TGN166, TGN168) 05.16 - 02.21 122 166 2694 4 2TR-FE
4.0 4x4 (GGN155) 05.16 - 02.21 175 238 3956 6 1GR-FE
2.4 GD-6 (GUN165) 03.16 - 110 150 2393 4 2GD-FTV
2.4 GD-6 4x4 (GUN155) 03.16 - 110 150 2393 4 2GD-FTV
2.8 GD-6 (GUN166) 01.16 - 02.21 130 177 2755 4 1GD-FTV
2.8 GD-6 4x4 01.16 - 02.21 130 177 2755 4 1GD-FTV
2.8 GD-6 (GUN166) 10.20 - 150 204 2755 4 1GD-FTV
2.8 GD-6 4x4 (GUN156) 10.20 - 150 204 2755 4 1GD-FTV

Land Cruiser Prado (J12) 09.02 - 12.10
4.0 (GRJ125) 10.04 - 01.10 179 243 3956 6 1GR-FE
4.0 (GRJ120, GRJ125, GRJ121) 03.03 - 05.05 183 249 3956 6 1GR-FE
3.0 D (KZJ120) 10.02 - 01.10 96 131 2982 4 1KZ-TE

Land Cruiser Prado (J15) 07.09 -
4.0 V6 VVT-i (GRJ150) 09.09 - 202 275 3956 6 1GR-FE
3.0 DT (KDJ150) 11.09 - 02.21 120 163 2982 4 1KD-FTV

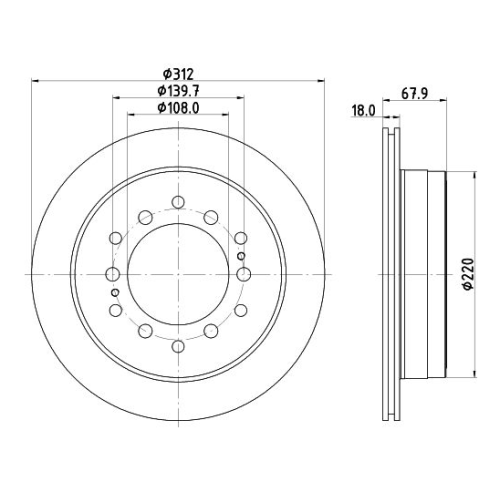

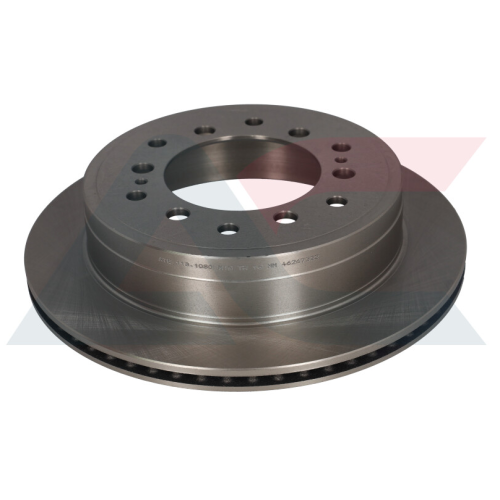

SPECS:
Fitting Position Rear Axle
Centering Diameter [mm] 108.00 mm
Height [mm] 67.80 mm
Diameter [mm] 312.00 mm
Number of Holes 6
Brake Disc Thickness [mm] 18 mm
Outer Diameter [mm] 312 mm
Brake Disc Type Vented
